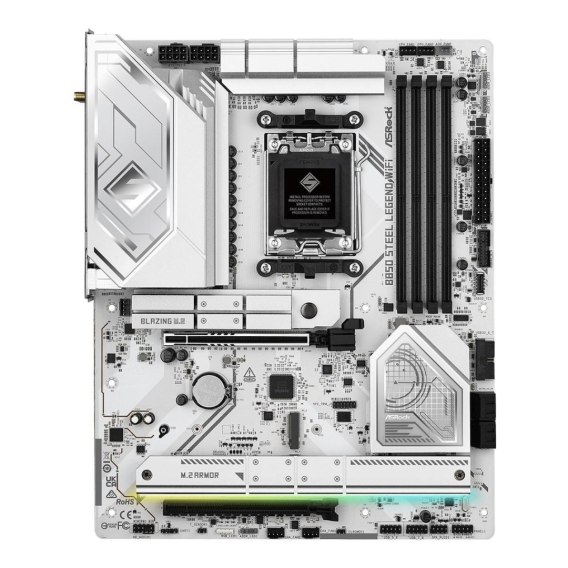

Płyta ASrock B850 Steel Legend WiFi /AMD B850/DDR5/SATA3/M.2/USB3.2/WiFi/BT/PCIe5.0/AM5/ATX
Symbol:
B850 Steel Legend WiFi
| Wpisz swój adres e-mail |
| Opinie | |
| Wysyłka w ciągu | 24 godziny |
| Cena przesyłki | 0 |
| Dostępność |
Brak towaru
|
Zostaw telefon
Gniazdo procesora: Socket AM5
Obsługiwane typy procesorów: AMD Ryzen™
Uwagi do procesora: - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
Format płyty: ATX
BIOS: - 256Mb AMI UEFI Legal BIOS with GUI support
Chipset płyty głównej: AMD B850
Ilość złącz pamięci DDR5: 4
Maksymalna wielkość pamięci: 256 GB
Tryb pracy pamięci RAM: Dual Channel
Standard pamięci: DDR5-8000+ (OC)
Uwagi do pamięci RAM: Supports DDR5 ECC/non-ECC, Supports Extreme Memory Profile (XMP) and EXTended Profiles for, Overclocking (EXPO) memory modules
Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s + 4x M.2
Uwagi do kontrolera SATA: CPU:, - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4, (128 Gb/s) mode, - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4, (64 Gb/s) mode, Chipset:, - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2260/2280, PCIe Gen4x4 (64 Gb/s) mode, - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280, PCIe Gen4x4 (64 Gb/s) mode, ASMedia ASM1061:, - 4 x SATA3 6.0 Gb/s Connectors, Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices, Supports NVMe SSD as boot disks, M2_1 is the first priority for M.2 installation., M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4, with 8000 (Phoenix 1 and Phoenix 2) series processors., M2_2 will run at Gen4x4 with 9000 and 7000 series processors, Gen4x4 with, 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2), series processors., If M2_4 is occupied, PCIE2 will be disabled.
Wbudowana karta graficzna: Brak lub AMD RDNA™ 2 (zależy od procesora)
Gniazda karty graficznej: HDMI
Uwagi do karty graficznej: - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max., resolution up to 4K 120Hz
Zintegrowana karta dźwiękowa: Realtek® ALC 4082 7.1-Channel USB High Definition Audio CODEC
Gniazda karty dźwiękowej: 2x Audio Jack, Wyjście optyczne S/PDIF, Wewnętrzne gniazdo audio przedniego panelu
Uwagi do karty dźwiękowej: - Nahimic Audio, - Individual PCB Layers for R/L Audio Channel, - Direct Drive Technology on Front headphone port, (Supports up to 600 Ohm headsets)
Złącza PCI Express x16: 2
Uwagi do złącz PCI: CPU:, - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, Chipset:, - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode, - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe, WiFi module, - 15µ Gold Contact in VGA PCIe Slot (PCIE1), PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with, 8000 (Phoenix 2) series processors., If M2_4 is occupied, PCIE2 will be disabled., Supports NVMe SSD as boot disks
Port LAN: 1x 2,5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
Uwagi do karty sieciowej: Supports Dragon 2.5G LAN Software, - Smart Auto Adjust Bandwidth Control, - Visual User Friendly UI, - Visual Network Usage Statistics, - Optimized Default Setting for Game, Browser, and Streaming Modes, - User Customized Priority Control
Maksymalna ilość portów USB 2.0: 8
Maksymalna ilość portów USB 3.x: 12
Porty USB na panelu tylnym: 4x USB 2.0 + 3x USB 3.0 + 2x USB 3.1 + 2x USB 3.1 Type-C
Gniazda USB na płycie głównej: 4x USB 2.0 + 4x USB 3.0 + 1x USB 3.2 Type-C
Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/be
Port Bluetooth: Bluetooth V5.4
Uwagi do WiFi / BT: - 802.11be 2x2 Wi-Fi 7 Module, - Supports 2.4GHz/5GHz/6GHz frequency band, - Supports 160MHz channel bandwidth with 6GHz frequency band, - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology, - Supports MU-MIMO
Port PS/2: Brak
Port szeregowy (COM): Brak
Port równoległy (LPT): Brak
Inne porty i gniazda: Thermistor Cable Header, Power LED and Speaker Header, RGB LED Header, 3x Addressable LED Headers, 2x CPU Fan connector(s), 3x Chassis Fan Connectors, AIO Pump Fan Connector, BIOS FlashBack button , 2x Antenna Ports, Front Panel Audio Connector, SPI TPM header (14-1pin)
Gniazdo zasilania: ATX (24-pin) + 2x ATX12V (8-pin)
Wymiary [S x W] (mm): 305 x 244
Opakowanie: BOX
Wyposażenie dodatkowe: - 2 x SATA Data Cables, - 2 x ASRock WiFi 2.4/5/6 GHz Antennas, - 1 x Thermistor Cable
Informacje dodatkowe: OS: Microsoft Windows® 10 64-bit / 11 64-bit, Certifications: FCC, CE, ErP/EuP ready, (ErP/EuP ready power supply is required)
Obsługiwane typy procesorów: AMD Ryzen™
Uwagi do procesora: - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
Format płyty: ATX
BIOS: - 256Mb AMI UEFI Legal BIOS with GUI support
Chipset płyty głównej: AMD B850
Ilość złącz pamięci DDR5: 4
Maksymalna wielkość pamięci: 256 GB
Tryb pracy pamięci RAM: Dual Channel
Standard pamięci: DDR5-8000+ (OC)
Uwagi do pamięci RAM: Supports DDR5 ECC/non-ECC, Supports Extreme Memory Profile (XMP) and EXTended Profiles for, Overclocking (EXPO) memory modules
Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s + 4x M.2
Uwagi do kontrolera SATA: CPU:, - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4, (128 Gb/s) mode, - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4, (64 Gb/s) mode, Chipset:, - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2260/2280, PCIe Gen4x4 (64 Gb/s) mode, - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280, PCIe Gen4x4 (64 Gb/s) mode, ASMedia ASM1061:, - 4 x SATA3 6.0 Gb/s Connectors, Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices, Supports NVMe SSD as boot disks, M2_1 is the first priority for M.2 installation., M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4, with 8000 (Phoenix 1 and Phoenix 2) series processors., M2_2 will run at Gen4x4 with 9000 and 7000 series processors, Gen4x4 with, 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2), series processors., If M2_4 is occupied, PCIE2 will be disabled.
Wbudowana karta graficzna: Brak lub AMD RDNA™ 2 (zależy od procesora)
Gniazda karty graficznej: HDMI
Uwagi do karty graficznej: - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max., resolution up to 4K 120Hz
Zintegrowana karta dźwiękowa: Realtek® ALC 4082 7.1-Channel USB High Definition Audio CODEC
Gniazda karty dźwiękowej: 2x Audio Jack, Wyjście optyczne S/PDIF, Wewnętrzne gniazdo audio przedniego panelu
Uwagi do karty dźwiękowej: - Nahimic Audio, - Individual PCB Layers for R/L Audio Channel, - Direct Drive Technology on Front headphone port, (Supports up to 600 Ohm headsets)
Złącza PCI Express x16: 2
Uwagi do złącz PCI: CPU:, - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, Chipset:, - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode, - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe, WiFi module, - 15µ Gold Contact in VGA PCIe Slot (PCIE1), PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with, 8000 (Phoenix 2) series processors., If M2_4 is occupied, PCIE2 will be disabled., Supports NVMe SSD as boot disks
Port LAN: 1x 2,5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
Uwagi do karty sieciowej: Supports Dragon 2.5G LAN Software, - Smart Auto Adjust Bandwidth Control, - Visual User Friendly UI, - Visual Network Usage Statistics, - Optimized Default Setting for Game, Browser, and Streaming Modes, - User Customized Priority Control
Maksymalna ilość portów USB 2.0: 8
Maksymalna ilość portów USB 3.x: 12
Porty USB na panelu tylnym: 4x USB 2.0 + 3x USB 3.0 + 2x USB 3.1 + 2x USB 3.1 Type-C
Gniazda USB na płycie głównej: 4x USB 2.0 + 4x USB 3.0 + 1x USB 3.2 Type-C
Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/be
Port Bluetooth: Bluetooth V5.4
Uwagi do WiFi / BT: - 802.11be 2x2 Wi-Fi 7 Module, - Supports 2.4GHz/5GHz/6GHz frequency band, - Supports 160MHz channel bandwidth with 6GHz frequency band, - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology, - Supports MU-MIMO
Port PS/2: Brak
Port szeregowy (COM): Brak
Port równoległy (LPT): Brak
Inne porty i gniazda: Thermistor Cable Header, Power LED and Speaker Header, RGB LED Header, 3x Addressable LED Headers, 2x CPU Fan connector(s), 3x Chassis Fan Connectors, AIO Pump Fan Connector, BIOS FlashBack button , 2x Antenna Ports, Front Panel Audio Connector, SPI TPM header (14-1pin)
Gniazdo zasilania: ATX (24-pin) + 2x ATX12V (8-pin)
Wymiary [S x W] (mm): 305 x 244
Opakowanie: BOX
Wyposażenie dodatkowe: - 2 x SATA Data Cables, - 2 x ASRock WiFi 2.4/5/6 GHz Antennas, - 1 x Thermistor Cable
Informacje dodatkowe: OS: Microsoft Windows® 10 64-bit / 11 64-bit, Certifications: FCC, CE, ErP/EuP ready, (ErP/EuP ready power supply is required)
BIOS:
- 256Mb AMI UEFI Legal BIOS with GUI support
Standard pamięci:
DDR5-8000+ (OC)
Opakowanie:
Box
Chipset płyty głównej:
AMD B850
Wyposażenie dodatkowe:
- 1 x Thermistor Cable, - 2 x ASRock WiFi 2.4/5/6 GHz Antennas, - 2 x SATA Data Cables
Wymiary [S x W] (mm):
305 x 244
Port Bluetooth:
Bluetooth V5.4
Format płyty:
ATX
Maksymalna wielkość pamięci:
256 GB
Port LAN:
1x 2,5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
Port Wi-Fi:
IEEE 802.11a/b/g/n/ac/ax/be
Wbudowana karta graficzna:
Brak lub AMD RDNA™ 2 (zależy od procesora)
Gniazdo procesora:
Socket AM5
Obsługiwane typy procesorów:
AMD Ryzen™
Uwagi do procesora:
- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
Tryb pracy pamięci RAM:
Dual Channel
Uwagi do pamięci RAM:
Overclocking (EXPO) memory modules, Supports DDR5 ECC/non-ECC, Supports Extreme Memory Profile (XMP) and EXTended Profiles for
Zintegrowany kontroler SATA:
Chipset+CPU: 4x SATA III 6Gb/s + 4x M.2
Uwagi do kontrolera SATA:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4, - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4, - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2260/2280, - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280, - 4x SATA3 6.0 Gb/s Connectors, (128 Gb/s) mode, (64 Gb/s) mode, 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2), ASMedia ASM1061:, Chipset:, CPU:, If M2_4 is occupied, PCIE2 will be disabled., M2_1 is the first priority for M.2 installation., M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4, M2_2 will run at Gen4x4 with 9000 and 7000 series processors, Gen4x4 with, PCIe Gen4x4 (64 Gb/s) mode, series processors., Supports NVMe SSD as boot disks, Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices, with 8000 (Phoenix 1 and Phoenix 2) series processors.
Gniazda karty graficznej:
HDMI
Uwagi do karty graficznej:
- 1x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max., resolution up to 4K 120Hz
Zintegrowana karta dźwiękowa:
Realtek® ALC 4082 7.1-Channel USB High Definition Audio CODEC
Gniazda karty dźwiękowej:
2x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu, Wyjście optyczne S/PDIF
Uwagi do karty dźwiękowej:
- Direct Drive Technology on Front headphone port, - Individual PCB Layers for R/L Audio Channel, - Nahimic Audio, (Supports up to 600 Ohm headsets)
Złącza PCI Express x16:
2
Uwagi do złącz PCI:
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode, - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe, - 15µ Gold Contact in VGA PCIe Slot (PCIE1), 8000 (Phoenix 2) series processors., Chipset:, CPU:, If M2_4 is occupied, PCIE2 will be disabled., PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with, Supports NVMe SSD as boot disks, WiFi module
Uwagi do karty sieciowej:
- Optimized Default Setting for Game, Browser, and Streaming Modes, - Smart Auto Adjust Bandwidth Control, - User Customized Priority Control, - Visual Network Usage Statistics, - Visual User Friendly UI, Supports Dragon 2.5G LAN Software
Maksymalna ilość portów USB 2.0:
8
Maksymalna ilość portów USB 3.x:
12
Porty USB na panelu tylnym:
4x USB 2.0 + 3x USB 3.0 + 2x USB 3.1 + 2x USB 3.1 Type-C
Gniazda USB na płycie głównej:
4x USB 2.0 + 4x USB 3.0 + 1x USB 3.2 Type-C
Port PS/2:
Brak
Port szeregowy (COM):
Brak
Port równoległy (LPT):
Brak
Inne porty i gniazda:
2x Antenna Ports, 2x CPU Fan connector(s), 3x Addressable LED Headers, 3x Chassis Fan Connectors, AIO Pump Fan Connector, BIOS FlashBack button , Front Panel Audio Connector, Power LED and Speaker Header, RGB LED Header, SPI TPM header (14-1pin), Thermistor Cable Header
Gniazdo zasilania:
ATX (24-pin) + 2x ATX12V (8-pin)
Ilość złącz pamięci DDR5:
4
Uwagi do WiFi / BT:
- 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology, - 802.11be 2x2 Wi-Fi 7 Module, - Supports 160MHz channel bandwidth with 6GHz frequency band, - Supports 2.4GHz/5GHz/6GHz frequency band, - Supports MU-MIMO
