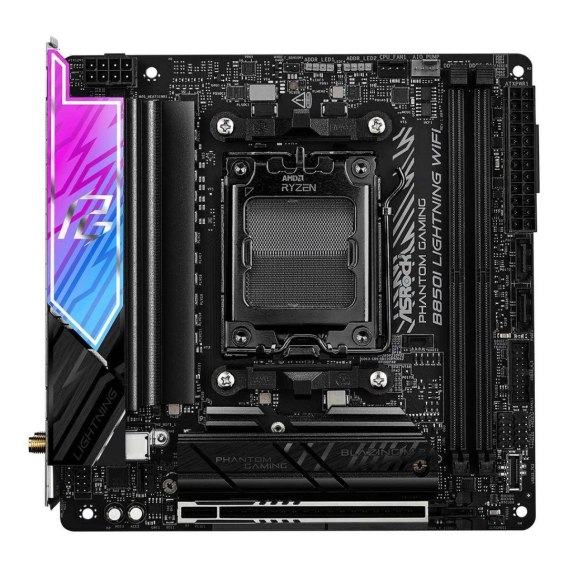

Płyta ASrock B850I Lightning WiFi /AMD B850/DDR5/SATA3/M.2/USB3.1/WiFi/BT/PCIe5.0/AM5/mITX
Symbol:
B850I Lightning WiFi
| Wpisz swój adres e-mail |
| Opinie | |
| Wysyłka w ciągu | 24 godziny |
| Cena przesyłki | 0 |
| Dostępność |
Brak towaru
|
Zostaw telefon
Gniazdo procesora: Socket AM5
Obsługiwane typy procesorów: AMD Ryzen™
Uwagi do procesora: - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
Format płyty: Mini-ITX
BIOS: - 256Mb AMI UEFI Legal BIOS with GUI support
Chipset płyty głównej: AMD B850
Ilość złącz pamięci DDR5: 2
Maksymalna wielkość pamięci: 128 GB
Tryb pracy pamięci RAM: Dual Channel
Standard pamięci: DDR5-8200+ (OC)
Uwagi do pamięci RAM: Supports DDR5 ECC/non-ECC, Supports Extreme Memory Profile (XMP) and EXTended Profiles for, Overclocking (EXPO) memory modules
Zintegrowany kontroler SATA: Chipset+CPU: 2x SATA III 6Gb/s - RAID 0,1 + 2x M.2 - RAID 0, 1, 10
Uwagi do kontrolera SATA: CPU:, - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4, (128 Gb/s) mode, Chipset:, - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4, (64 Gb/s) mode, - 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s &, PCIe Gen3x4 (32 Gb/s) mode, - 2 x SATA3 6.0 Gb/s Connectors, M2_1 is the first priority for M.2 installation., M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4, with 8000 (Phoenix 1 and Phoenix 2) series processors., Supports NVMe SSD as boot disks, Supports RAID 0 and RAID 1 for SATA storage devices, Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices, Requires additional M.2 NVMe expansion cards to support RAID 10
Wbudowana karta graficzna: Brak lub AMD RDNA™ 2 (zależy od procesora)
Gniazda karty graficznej: HDMI, USB Type-C
Uwagi do karty graficznej: - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max., resolution up to 4K 120Hz, - 1 x USB 3.2 Gen2 Type-C, supports DP 1.4 HBR3 and max. resolution up to, 4K 60Hz (DP-alt mode supports DP1.4a)
Zintegrowana karta dźwiękowa: Realtek® ALC 1220 7.1-Channel High Definition Audio CODEC
Gniazda karty dźwiękowej: 2x Audio Jack, Wyjście optyczne S/PDIF, Wewnętrzne gniazdo audio przedniego panelu
Uwagi do karty dźwiękowej: - Nahimic Audio, - Individual PCB Layers for R/L Audio Channel, - Impedance Sensing on Rear Out port
Złącza PCI Express x16: 1
Uwagi do złącz PCI: CPU:, - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, Chipset:, - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT, PCIe WiFi module, PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with, 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2), series processors., Supports NVMe SSD as boot disks
Port LAN: 1x 2,5 Gigabit LAN 10/100/1000/2500 Mb/s (Killer E3100G)
Uwagi do karty sieciowej: Supports Killer LAN Software
Maksymalna ilość portów USB 2.0: 6
Maksymalna ilość portów USB 3.x: 7
Porty USB na panelu tylnym: 4x USB 2.0 + 1x USB 3.0 + 2x USB 3.1 + 1x USB 3.1 Type-C
Gniazda USB na płycie głównej: 2x USB 2.0 + 2x USB 3.0 + 1x USB 3.0 Type-C
Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/axe
Port Bluetooth: Bluetooth V5.2
Uwagi do WiFi / BT: - 802.11axe Wi-Fi 6E Module, - Supports Dual-Band 2x2 with extended 6GHz band support, - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology, - Supports MU-MIMO, The Wi-Fi 6E module is supported by Microsoft Windows® 11 only. There is no, driver available for Windows® 10. The availability of the 6GHz band will, depend on the different regulation status of each country and region. It, will be activated (for supported countries) through Windows® Update and, software updates once available., A 6GHz compatible router is required for 6E functionality.
Port PS/2: Brak
Port szeregowy (COM): Brak
Port równoległy (LPT): Brak
Inne porty i gniazda: Thermistor Cable Header, Front Panel Audio Connector, 2x Addressable LED headers, CPU Fan connector, Chassis Fan connector, AIO Pump Fan Connector, BIOS FlashBack button , 2x Antenna Ports
Gniazdo zasilania: ATX (24-pin) + ATX12V (8-pin)
Wymiary [S x W] (mm): 170 x 170
Opakowanie: BOX
Wyposażenie dodatkowe: - 2 x SATA Data Cables, - 2 x ASRock WiFi 2.4/5/6 GHz Antennas, - 2 x Screws for M.2 Sockets, - 1 x Thermistor Cable
Informacje dodatkowe: OS: Microsoft Windows® 10 64-bit / 11 64-bit, Certifications: FCC, CE, ErP/EuP ready, (ErP/EuP ready power supply is required)
Obsługiwane typy procesorów: AMD Ryzen™
Uwagi do procesora: - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
Format płyty: Mini-ITX
BIOS: - 256Mb AMI UEFI Legal BIOS with GUI support
Chipset płyty głównej: AMD B850
Ilość złącz pamięci DDR5: 2
Maksymalna wielkość pamięci: 128 GB
Tryb pracy pamięci RAM: Dual Channel
Standard pamięci: DDR5-8200+ (OC)
Uwagi do pamięci RAM: Supports DDR5 ECC/non-ECC, Supports Extreme Memory Profile (XMP) and EXTended Profiles for, Overclocking (EXPO) memory modules
Zintegrowany kontroler SATA: Chipset+CPU: 2x SATA III 6Gb/s - RAID 0,1 + 2x M.2 - RAID 0, 1, 10
Uwagi do kontrolera SATA: CPU:, - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4, (128 Gb/s) mode, Chipset:, - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4, (64 Gb/s) mode, - 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s &, PCIe Gen3x4 (32 Gb/s) mode, - 2 x SATA3 6.0 Gb/s Connectors, M2_1 is the first priority for M.2 installation., M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4, with 8000 (Phoenix 1 and Phoenix 2) series processors., Supports NVMe SSD as boot disks, Supports RAID 0 and RAID 1 for SATA storage devices, Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices, Requires additional M.2 NVMe expansion cards to support RAID 10
Wbudowana karta graficzna: Brak lub AMD RDNA™ 2 (zależy od procesora)
Gniazda karty graficznej: HDMI, USB Type-C
Uwagi do karty graficznej: - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max., resolution up to 4K 120Hz, - 1 x USB 3.2 Gen2 Type-C, supports DP 1.4 HBR3 and max. resolution up to, 4K 60Hz (DP-alt mode supports DP1.4a)
Zintegrowana karta dźwiękowa: Realtek® ALC 1220 7.1-Channel High Definition Audio CODEC
Gniazda karty dźwiękowej: 2x Audio Jack, Wyjście optyczne S/PDIF, Wewnętrzne gniazdo audio przedniego panelu
Uwagi do karty dźwiękowej: - Nahimic Audio, - Individual PCB Layers for R/L Audio Channel, - Impedance Sensing on Rear Out port
Złącza PCI Express x16: 1
Uwagi do złącz PCI: CPU:, - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, Chipset:, - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT, PCIe WiFi module, PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with, 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2), series processors., Supports NVMe SSD as boot disks
Port LAN: 1x 2,5 Gigabit LAN 10/100/1000/2500 Mb/s (Killer E3100G)
Uwagi do karty sieciowej: Supports Killer LAN Software
Maksymalna ilość portów USB 2.0: 6
Maksymalna ilość portów USB 3.x: 7
Porty USB na panelu tylnym: 4x USB 2.0 + 1x USB 3.0 + 2x USB 3.1 + 1x USB 3.1 Type-C
Gniazda USB na płycie głównej: 2x USB 2.0 + 2x USB 3.0 + 1x USB 3.0 Type-C
Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/axe
Port Bluetooth: Bluetooth V5.2
Uwagi do WiFi / BT: - 802.11axe Wi-Fi 6E Module, - Supports Dual-Band 2x2 with extended 6GHz band support, - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology, - Supports MU-MIMO, The Wi-Fi 6E module is supported by Microsoft Windows® 11 only. There is no, driver available for Windows® 10. The availability of the 6GHz band will, depend on the different regulation status of each country and region. It, will be activated (for supported countries) through Windows® Update and, software updates once available., A 6GHz compatible router is required for 6E functionality.
Port PS/2: Brak
Port szeregowy (COM): Brak
Port równoległy (LPT): Brak
Inne porty i gniazda: Thermistor Cable Header, Front Panel Audio Connector, 2x Addressable LED headers, CPU Fan connector, Chassis Fan connector, AIO Pump Fan Connector, BIOS FlashBack button , 2x Antenna Ports
Gniazdo zasilania: ATX (24-pin) + ATX12V (8-pin)
Wymiary [S x W] (mm): 170 x 170
Opakowanie: BOX
Wyposażenie dodatkowe: - 2 x SATA Data Cables, - 2 x ASRock WiFi 2.4/5/6 GHz Antennas, - 2 x Screws for M.2 Sockets, - 1 x Thermistor Cable
Informacje dodatkowe: OS: Microsoft Windows® 10 64-bit / 11 64-bit, Certifications: FCC, CE, ErP/EuP ready, (ErP/EuP ready power supply is required)
BIOS:
- 256Mb AMI UEFI Legal BIOS with GUI support
Standard pamięci:
DDR5-8200+ (OC)
Opakowanie:
Box
Chipset płyty głównej:
AMD B850
Wyposażenie dodatkowe:
- 1 x Thermistor Cable, - 2 x ASRock WiFi 2.4/5/6 GHz Antennas, - 2 x SATA Data Cables, - 2 x Screws for M.2 Sockets
Wymiary [S x W] (mm):
170 x 170
Port Bluetooth:
Bluetooth V5.2
Format płyty:
Mini-ITX
Maksymalna wielkość pamięci:
128 GB
Port LAN:
1x 2,5 Gigabit LAN 10/100/1000/2500 Mb/s (Killer E3100G)
Port Wi-Fi:
IEEE 802.11a/b/g/n/ac/ax/axe
Wbudowana karta graficzna:
Brak lub AMD RDNA™ 2 (zależy od procesora)
Gniazdo procesora:
Socket AM5
Obsługiwane typy procesorów:
AMD Ryzen™
Uwagi do procesora:
- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
Tryb pracy pamięci RAM:
Dual Channel
Uwagi do pamięci RAM:
Overclocking (EXPO) memory modules, Supports DDR5 ECC/non-ECC, Supports Extreme Memory Profile (XMP) and EXTended Profiles for
Zintegrowany kontroler SATA:
Chipset+CPU: 2x SATA III 6Gb/s - RAID 0,1 + 2x M.2 - RAID 0, 1, 10
Uwagi do kontrolera SATA:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4, - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4, - 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s &, - 2x SATA3 6.0 Gb/s Connectors, (128 Gb/s) mode, (64 Gb/s) mode, Chipset:, CPU:, M2_1 is the first priority for M.2 installation., M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4, PCIe Gen3x4 (32 Gb/s) mode, Requires additional M.2 NVMe expansion cards to support RAID 10, Supports NVMe SSD as boot disks, Supports RAID 0 and RAID 1 for SATA storage devices, Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices, with 8000 (Phoenix 1 and Phoenix 2) series processors.
Gniazda karty graficznej:
HDMI, USB Type-C
Uwagi do karty graficznej:
- 1 x USB 3.2 Gen2 Type-C, supports DP 1.4 HBR3 and max. resolution up to, - 1x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max., 4K 60Hz (DP-alt mode supports DP1.4a), resolution up to 4K 120Hz
Zintegrowana karta dźwiękowa:
Realtek® ALC 1220 7.1-Channel High Definition Audio CODEC
Gniazda karty dźwiękowej:
2x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu, Wyjście optyczne S/PDIF
Uwagi do karty dźwiękowej:
- Impedance Sensing on Rear Out port, - Individual PCB Layers for R/L Audio Channel, - Nahimic Audio
Złącza PCI Express x16:
1
Uwagi do złącz PCI:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT, 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2), Chipset:, CPU:, PCIe WiFi module, PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with, series processors., Supports NVMe SSD as boot disks
Uwagi do karty sieciowej:
Supports Killer LAN Software
Maksymalna ilość portów USB 2.0:
6
Maksymalna ilość portów USB 3.x:
7
Porty USB na panelu tylnym:
4x USB 2.0 + 1x USB 3.0 + 2x USB 3.1 + 1x USB 3.1 Type-C
Gniazda USB na płycie głównej:
2x USB 2.0 + 2x USB 3.0 + 1x USB 3.0 Type-C
Port PS/2:
Brak
Port szeregowy (COM):
Brak
Port równoległy (LPT):
Brak
Inne porty i gniazda:
2x Addressable LED headers, 2x Antenna Ports, AIO Pump Fan Connector, BIOS FlashBack button , Chassis Fan connector, CPU Fan connector, Front Panel Audio Connector, Thermistor Cable Header
Gniazdo zasilania:
ATX (24-pin) + ATX12V (8-pin)
Ilość złącz pamięci DDR5:
2
Uwagi do WiFi / BT:
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology, - 802.11axe Wi-Fi 6E Module, - Supports Dual-Band 2x2 with extended 6GHz band support, - Supports MU-MIMO, A 6GHz compatible router is required for 6E functionality., depend on the different regulation status of each country and region. It, driver available for Windows® 10. The availability of the 6GHz band will, software updates once available., The Wi-Fi 6E module is supported by Microsoft Windows® 11 only. There is no, will be activated (for supported countries) through Windows® Update and
